meta-tolomeo splits the platform into layers by concern, so an integrator replaces the machine and keeps the distribution and the application stack.

Each Layer Owns One Concern

Each layer can evolve independently of the others. The sections below name the concern of each layer in the repository.

meta-tolomeo-app

The ToloMEO application stack: the ToloMEO Edge agent, NATS, tlm-services, Glances, the image-devel, image-prod and image-test-prod images, and the packagegroup-tlm-* package groups. It is separate from the distribution layer so image composition can change without touching distribution policy.

meta-tolomeo-bsp

The machine includes every BSP requires: the eMMC and NAND storage profiles, u-boot-secure-boot.inc and the U-Boot FIT signature fragment. It contributes no machines.

meta-tolomeo-containers

Docker image recipes (Glances, InfluxDB) and the container_provisioner class, which archives a container image into the root filesystem.

meta-tolomeo-distro

The distribution base tolomeo.inc and the custom classes: artifact collection, CycloneDX SBOM and VEX generation, the SWUpdate configuration and delta classes, and the tolomeo_* configuration classes. It also holds the recipes that implement the update infrastructure: the SWUpdate bbappend, the OTA monitor and the system-update-postboot service. It centralizes the cross-cutting concerns (SBOM generation, update infrastructure, integrity checking) so hardware and application layers do not repeat them.

meta-tolomeo-nxp

The NXP i.MX secure-boot support: the xhab, sigtool and kernel_fitimage_mcore classes, the U-Boot HAB and AHAB configuration, the NXP signer and imx-mkimage recipes, and the device-tree hardware revision for SWUpdate. It has no machine configurations; machines come from your BSP.

meta-tolomeo-offline

The opt-in offline capabilities: tlm-bridge, a local NATS server, PostgreSQL with TimescaleDB, and the packagegroup-tlm-system-offline package group. kas/offline.yml enables it.

meta-tolomeo-qemu

The QEMU machines for x86-64, AArch64 and ARM, the tolomeo-prod and tolomeo-devel reference distributions, the imgen-* update-package recipes, and the disk-provisioning scripts. The machines provide a functionally equivalent virtual target, so the distribution and the application stack can be developed and tested without hardware.

meta-tolomeo Stops at the Machine

meta-tolomeo provides the distribution and the ToloMEO application stack, including the services that give the device access to ToloMEO Cloud features. The BSP is responsible for the machine. This boundary determines which files an integration project writes and which it only references.

meta-tolomeo provides The BSP is responsible for
tolomeo.inc — the distribution base A distribution include and one distro configuration per flavor deriving from it
CVE check, CycloneDX/VEX, SWUpdate, secure boot and hardening classes and includes The DISTRO_FEATURES selection the product needs
tolomeo-image-common.inc, packagegroup-tlm-*, ToloMEO Cloud service recipes An image include and image recipes deriving from them
A kas fragment per layer, declaring repositories, config blocks and passthrough variables kas/base.yml, kas/common.yml, the target files and kas-ci/
Storage and secure-boot machine includes, plus a reference machine to build against Machine configurations, board recipes and WIC (.wks) partition layouts

meta-tolomeo-distro ships only conf/distro/include/. The reference distributions tolomeo-devel and tolomeo-prod live in meta-tolomeo-qemu; a BSP derives its own distributions from tolomeo.inc instead of inheriting them.

QEMU Machines Replace Hardware During Development

meta-tolomeo-nxp adds NXP i.MX support to a machine from your BSP, so the i.MX row below carries no machine name. The three QEMU machines are provided for development and testing.

Platform Machine Use Case
NXP i.MX (BSP-specific) Production hardware deployment
QEMU x86-64 tolomeo-qemux86-64 Development and testing
QEMU AArch64 tolomeo-qemuarm64 Development and testing
QEMU ARM tolomeo-qemuarm Development and testing

Build Targets Follow the Machine, Distro and Image

The kas configuration files for the QEMU x86-64 machine follow one naming convention:

<machine>_<distro>_<image>.yml
Configuration Machine Distribution Image Purpose
tolomeo-qemux86-64_tolomeo-prod_image-prod.yml x86-64 QEMU tolomeo-prod image-prod Production image
tolomeo-qemux86-64_tolomeo-devel_image-devel.yml x86-64 QEMU tolomeo-devel image-devel Development image
tolomeo-qemux86-64_tolomeo-prod_image-test-prod.yml x86-64 QEMU tolomeo-prod image-test-prod Security validation
tolomeo-qemux86-64_imgen-update-full.yml x86-64 QEMU tolomeo-prod imgen-update-full SWUpdate full package
tolomeo-qemux86-64_imgen-update-delta.yml x86-64 QEMU tolomeo-prod imgen-update-delta SWUpdate delta package

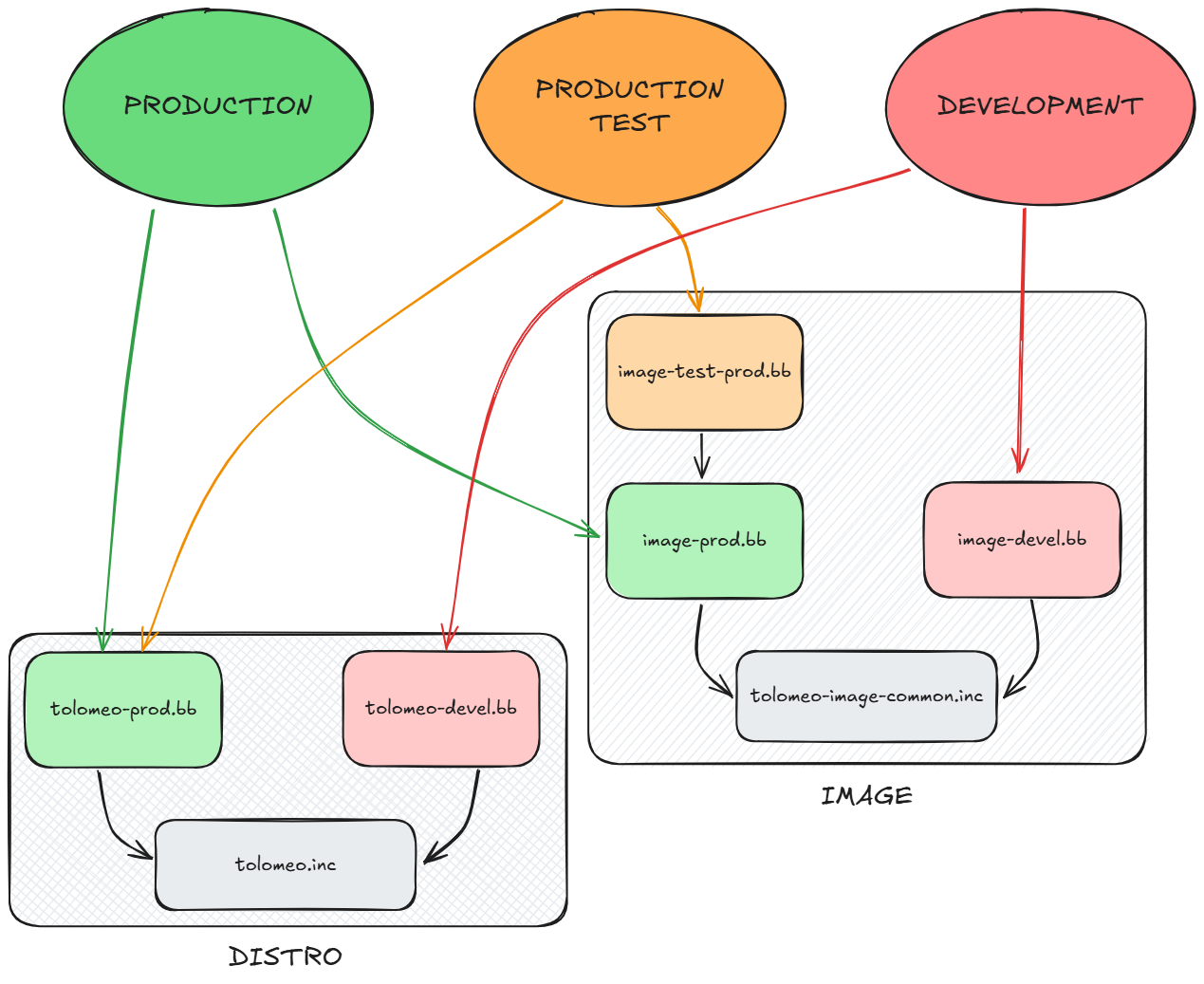

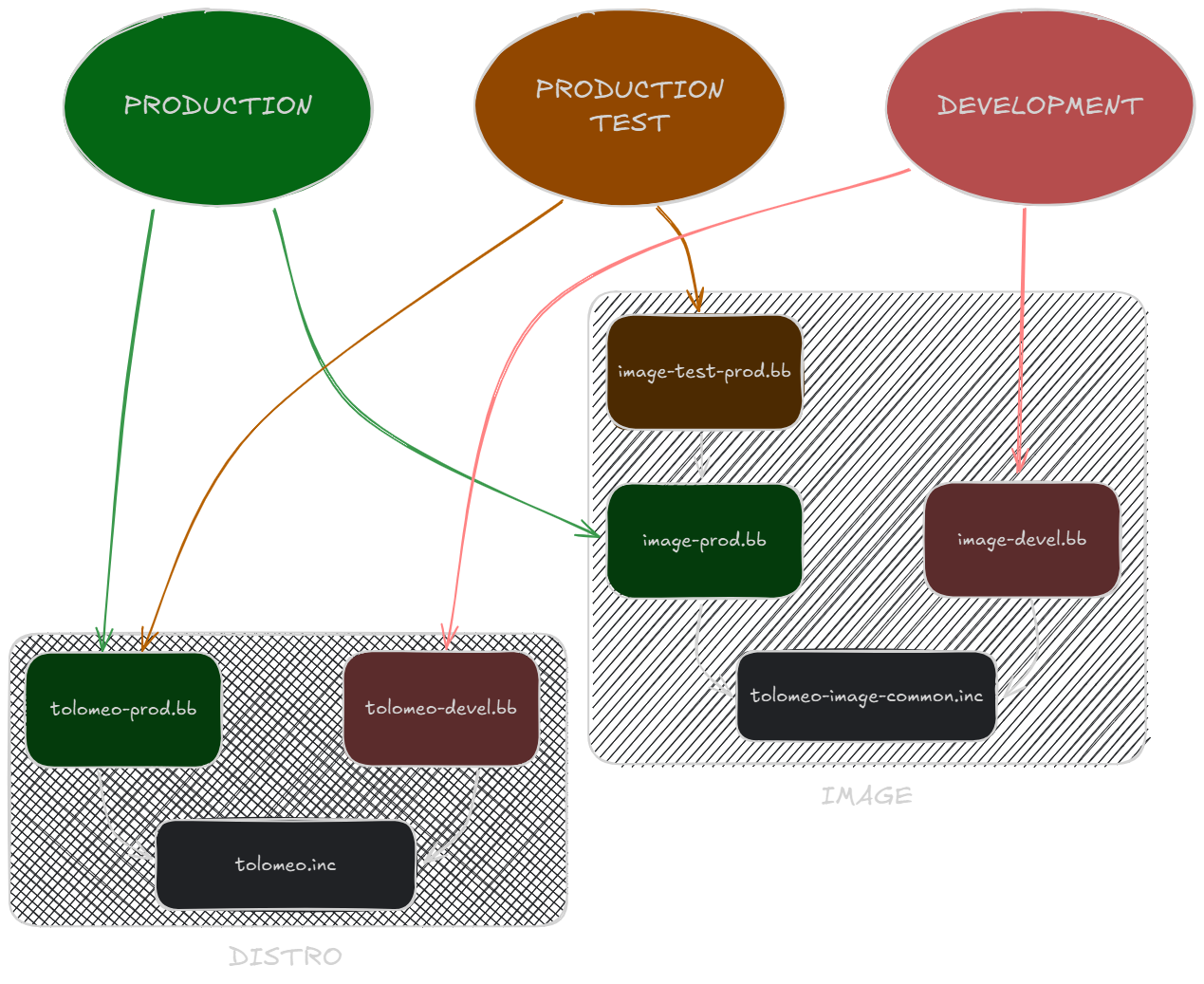

Layer and image structure — light mode Layer and image structure — dark mode
